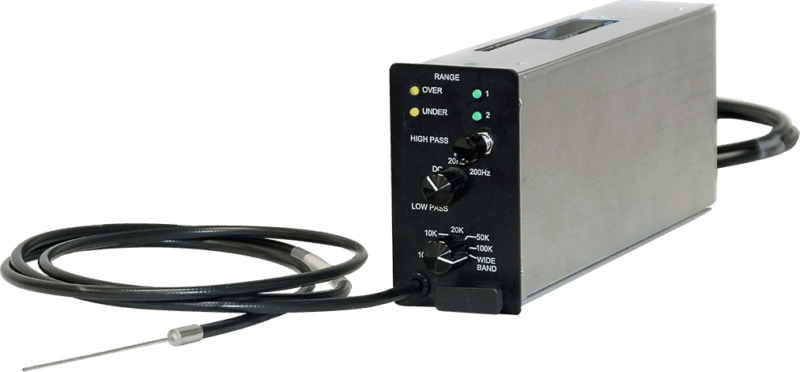

MTI Instruments光纤传感器Fotonic插件模块

发布时间：2020-12-28 16:06:25 浏览：1886

MTI Instruments光纤传感器的Fotonic插件模块用于测量频率高达500 kHz的动态边缘位置、位移和振动，Fotonic插件模块用于灵敏的光纤纳米运动和振动测量传感器。

动态边缘位置、位移和振动测量频率可达500 kHz。MTI Instruments独特的光纤探针设计能够适应各种目标反射率或形状，非常适合于各种应用，如超声波喇叭振动或压电材料的研究。

随机光纤分布--随着从探针到目标的距离增大，接收到的光纤按比例捕获更多的光。结果是一个非常敏感的线性输出响应。探针间隙的不断增大将按比例减少接收到的光量，从而产生敏感的线性输出响应，并且具有很大的测量范围和隔离距离。


应用领域

盒式运动

核换热器振动

压电陶瓷，1-3 PZT/聚合物复合材料和PVDF薄膜

压电叠加运动

MTI Instruments是美国精密测试仪器的制造商。其产品需要精确的测量和控制，以及自动化制造、装配和复杂机械操作的开发和实施。MTI Instruments主要用于商用和军用飞机发动机振动定位测试、半导体晶片测试等领域。

深圳市利来国国际网站创展科技有限公司，优势直接渠道提供MTI Instrument s订货服务，欢迎咨询。

详情了解MTI Instrument s请点击：/brand/70.html

或联系我们的销售工程师：0755-83050846 QQ: 3312069749

P/N	Model	Measurement Range	Stand-Off	Resolution	Frequency Response
8500-1011	Plug-in Module: MTI-2020R	0.102mm (4mils) – 0.305mm (12mils)	0.127mm (5mils) – 0.508mm (20mils)	0.01?m (1?in) – 0.1?m (1?in)	120kHz
8500-1012	Plug-in Module: MTI-2032R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 0.889mm (35mils)	0.01?m (1?in) – 0.1?m (1?in)	120kHz
8500-1013	Plug-in Module: MTI-2047R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 1.118mm (44mils)	0.01?m (1?in) – 0.1?m (1?in)	130kHz
8500-1014	Plug-in Module: MTI-2062R	0.152mm (6mils) – 1.524mm (60mils)	0.127mm (5mils) – 1.778mm (70mils)	0.01?m (1?in) – 0.1?m (1?in)	150kHz
8500-1015	Plug-in Module: MTI-2062H	0.762mm (30mils) – 1.905mm (75mils)	0.762mm (30mils) – 3.81mm (150mils)	0.01?m (1?in) – 0.1?m (1?in)	150kHz
8500-1016	Plug-in Module: MTI-2125R	0.152mm (6mils) – 3.556mm (140mils)	0.178mm (7mils) – 3.048mm (120mils)	0.01?m (1?in) – 0.1?m (1?in)	190kHz
8500-1017	Plug-in Module: MTI-2125H	1.778mm (70mils) – 4.445mm (175mils)	1.27mm (50mils) – 7.62mm (300mils)	0.01?m (1?in) – 0.1?m (1?in)	150kHz
8500-1018	Plug-in Module: MTI-2125CTI	0.508mm (20mils) – 3.556mm (140mils)	0.762mm (30mils) – 5.588mm (220mils)	0.01?m (1?in) – 0.1?m (1?in)	150kHz
8500-1019	Plug-in Module: MTI-2032RX High Resolution	0.036mm (1.4mils) – 4.445mm (175mils)	0.038mm (1.5mils)	0.01?m (1?in) – 0.1?m (1?in)	100kHz
8000-4237	Plug-in Module: MTI-RC200	2.54mm (100mils)	2.54mm (100mils)	0.01?m (1?in) – 0.1?m (1?in)	100kHz
8500-1020	Plug-in Module: MTI-2047E	0.127mm (5mils) – 0.051mm (2mils)			100kHz
8500-1021	Plug-in Module: MTI-2062E	0.191mm (7.5mils) – 0.061mm (2.4mils)			100kHz
